Opening an Existing Model

1. Click 'File Open'

• Click the 'File Open' button in the toolbar.
• A dialog box will appear, displaying a list of previously created models.

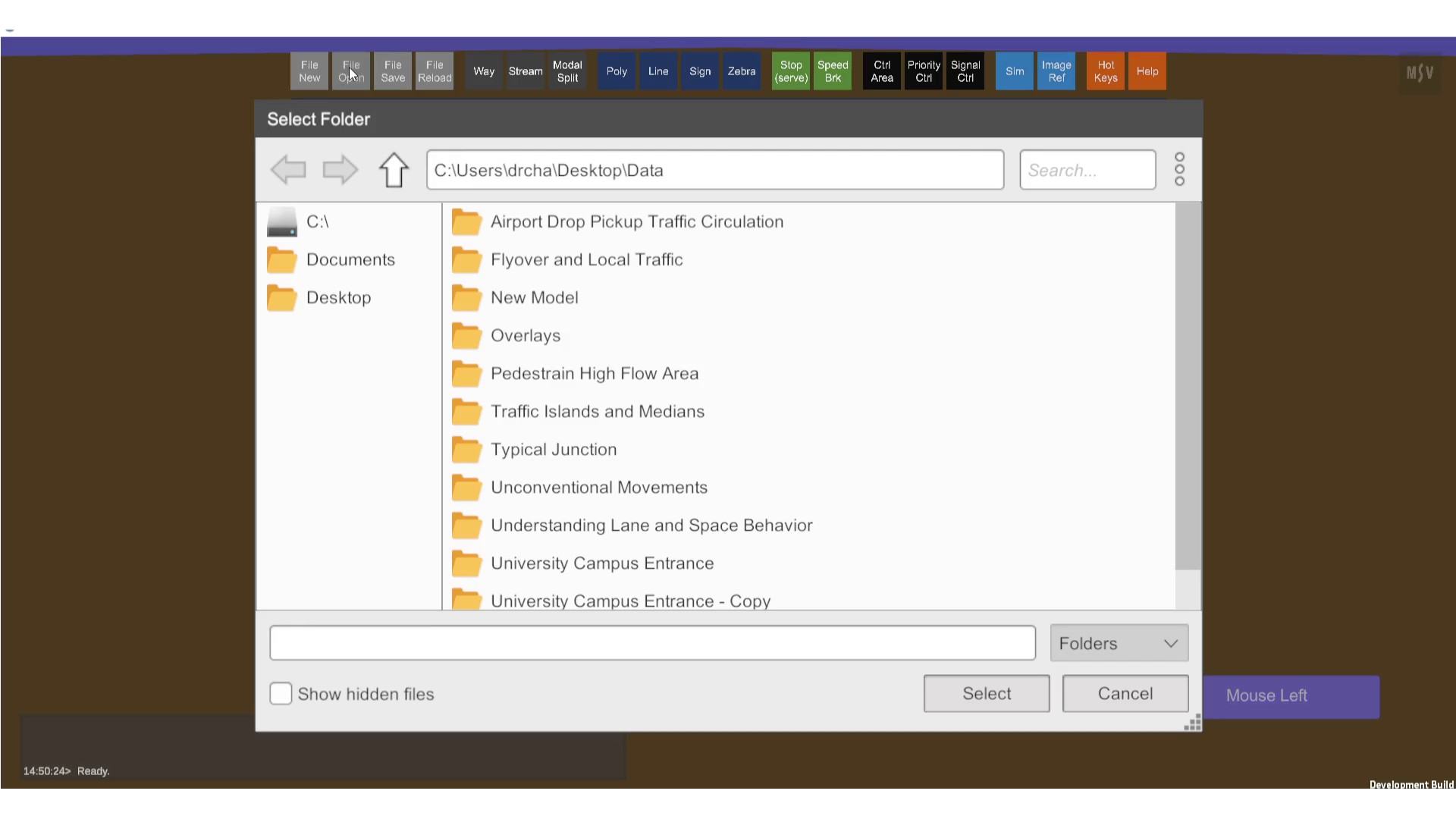

Dialog box showing list of models in Data folder

2. Select the Model Folder

• Choose the model folder that needs to be opened.
• If it is a newly created model with no objects added yet, choose the corresponding folder.
• If the model is stored elsewhere, use the dialog box options to navigate to the location where the data folder is stored.

3. Confirm Selection

• Once the correct data folder is chosen, press the 'Select' button in the dialog box.

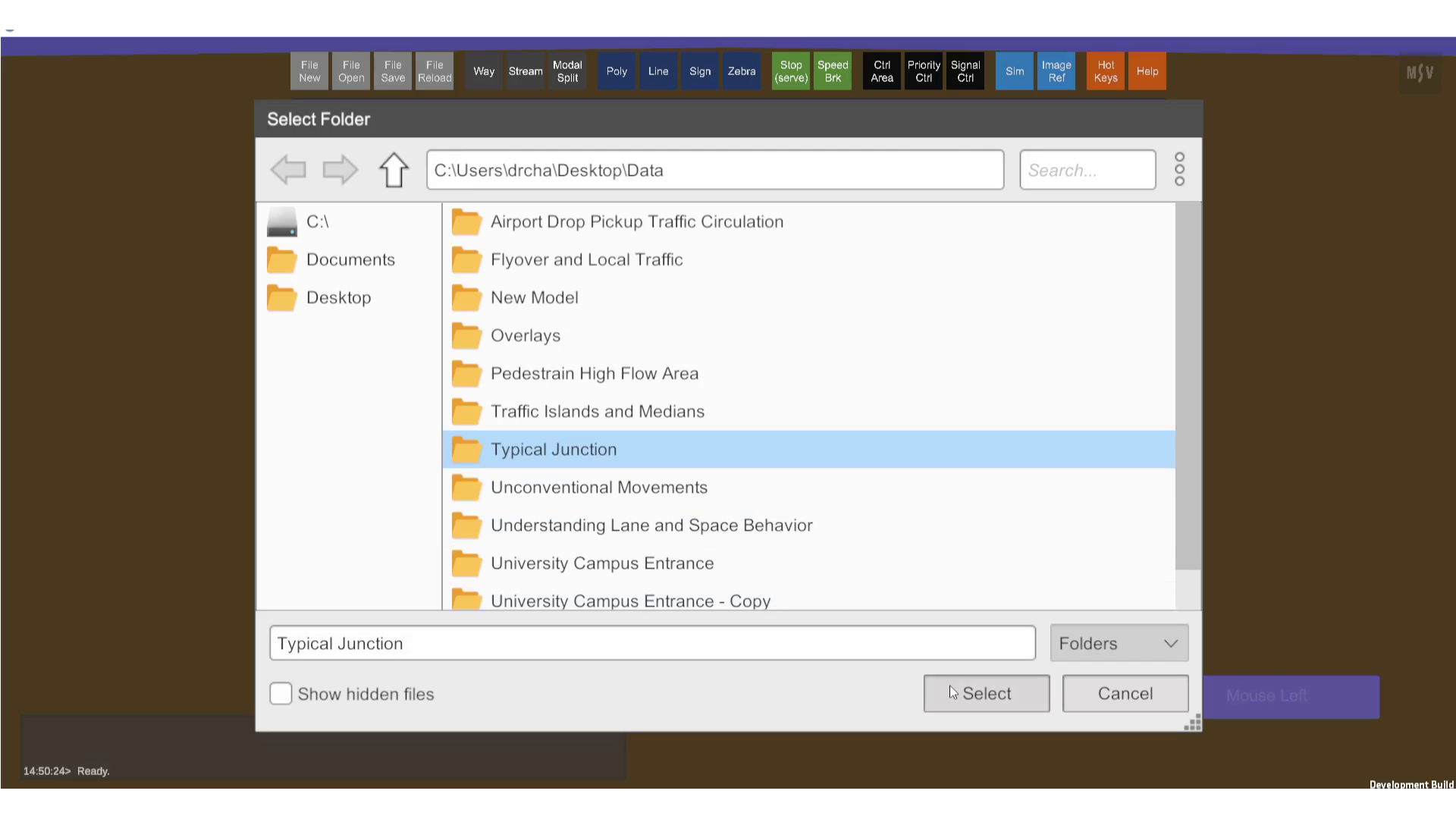

Choosing an existing model (folder)

4. Check the Model and Reporter Window

• The model should open in the main window, and the reporter should display the message ‘Ready’ if the model has been opened successfully.
• If the model fails to open, an error message will appear in the Reporter Window. Read the message and follow the instructions to resolve the issue.

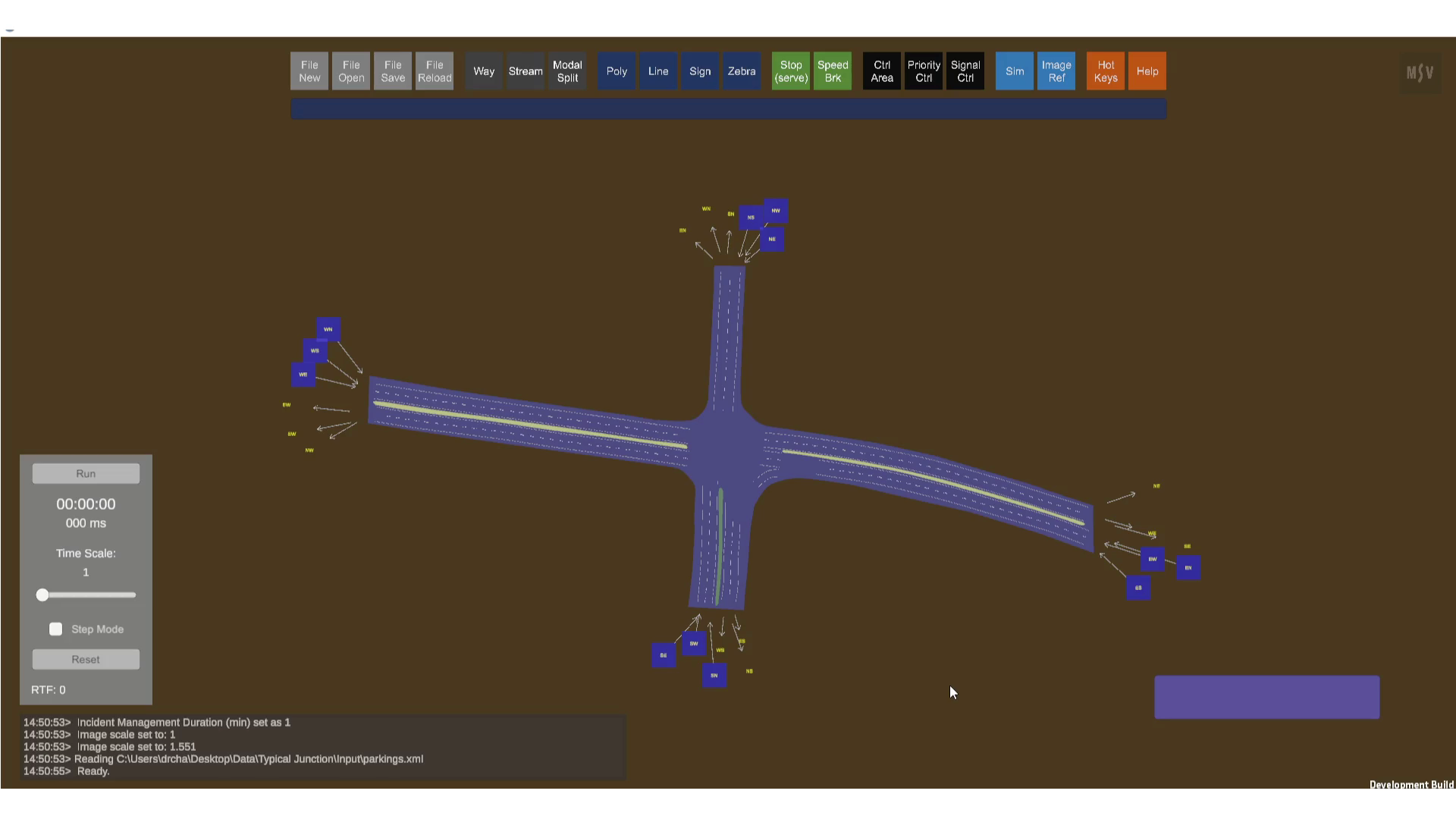

Model created for a typical junction
